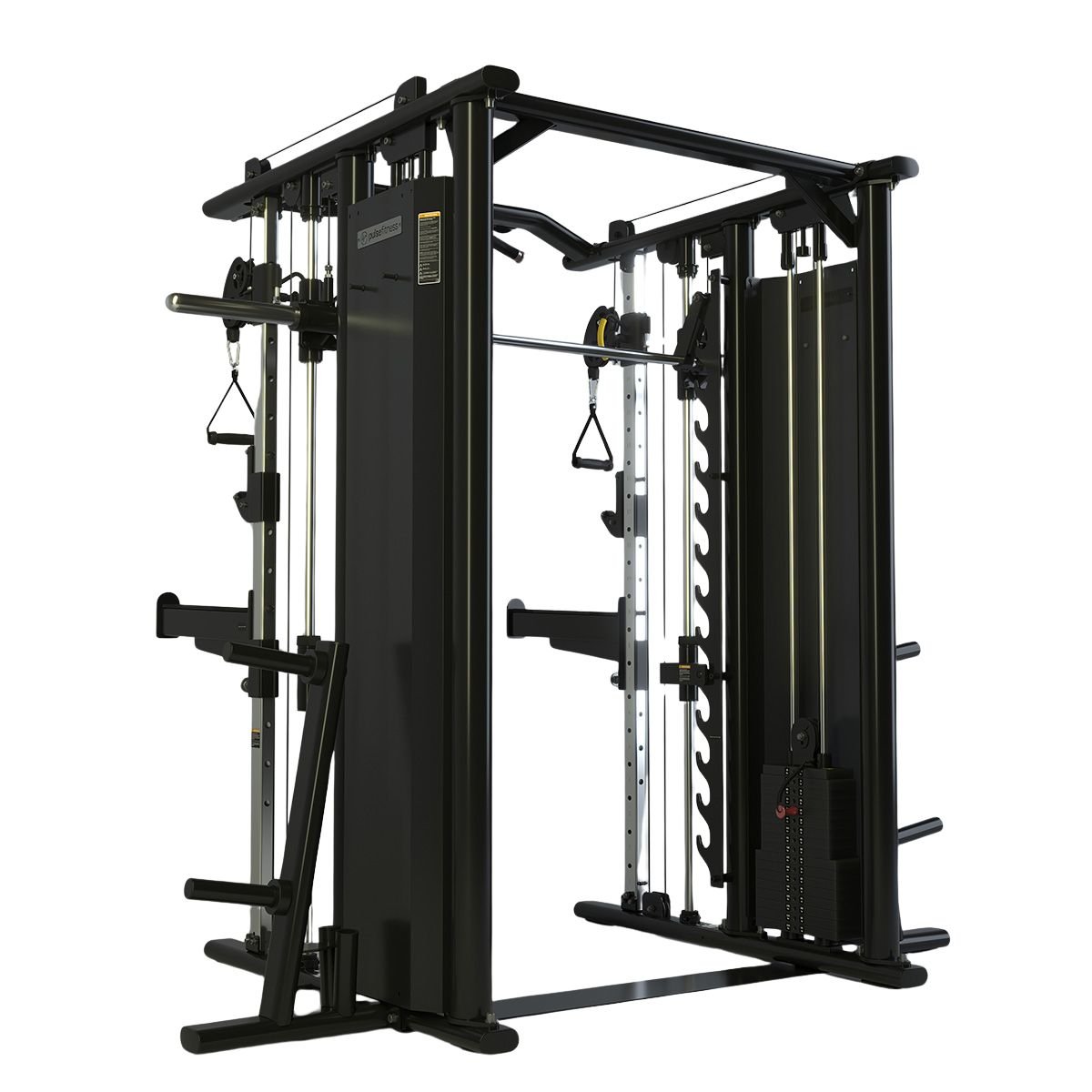

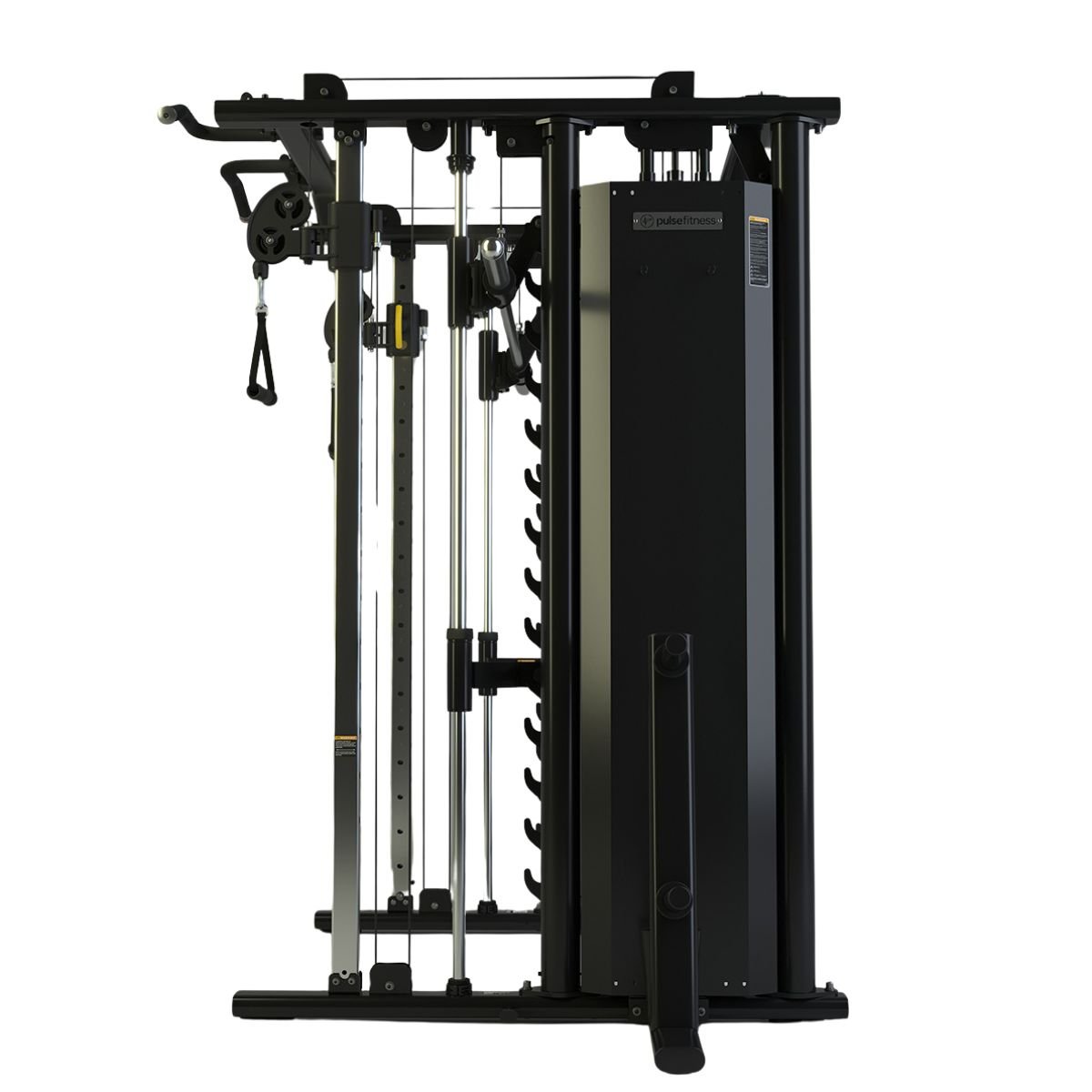

Pulse Fitness Multi-Functional Strength Rack

Dual Pulley | Half Rack | Smith Machine | 3-in-1 Trainer | 1:1 Ratio | Full Commercial Grade

Transform your strength-training space with the Pulse Fitness Multi-Functional Trainer Rack — the ultimate all-in-one solution for versatile, high-performance workouts.

This commercial-grade system combines four fully functional strength modules into one compact, intelligently engineered frame:

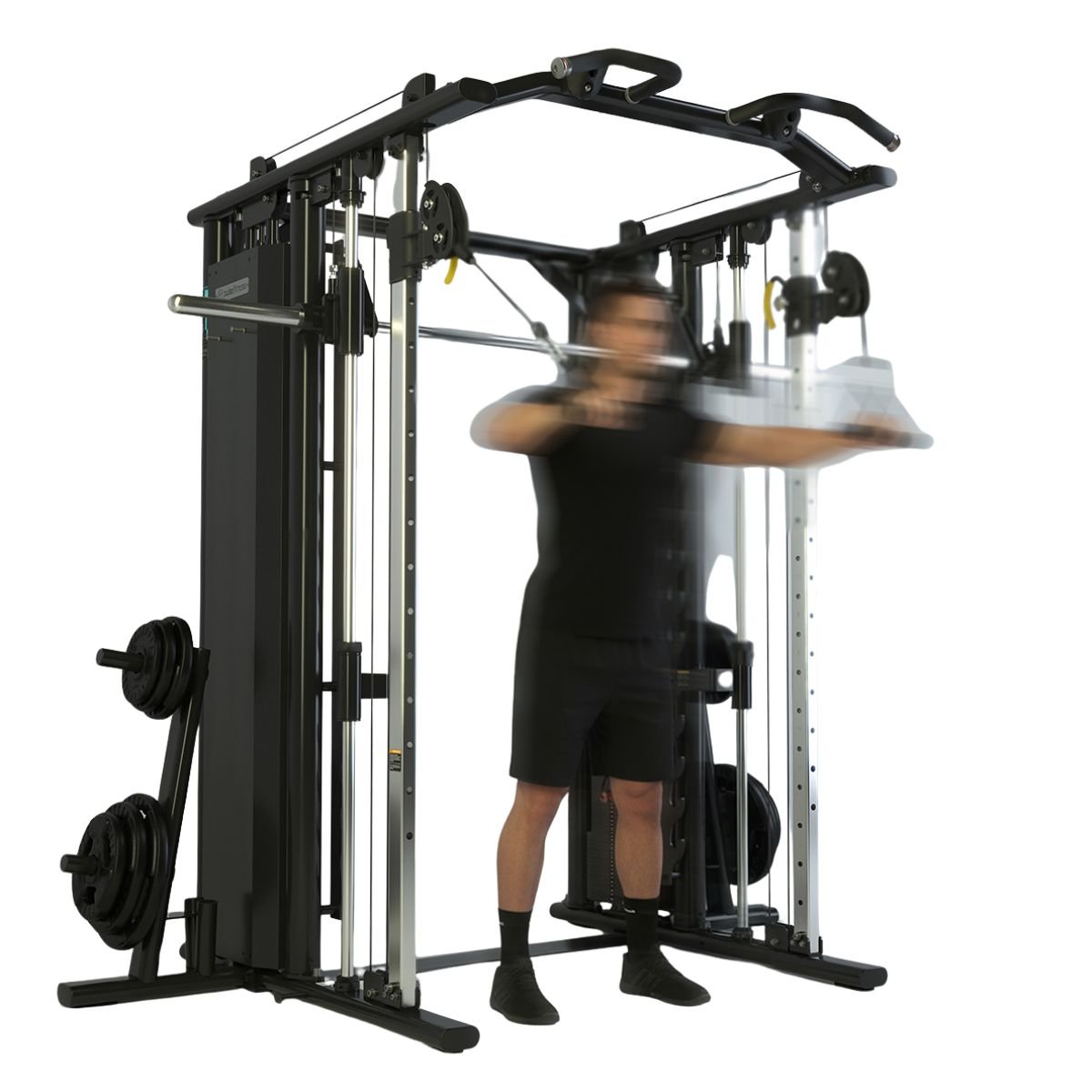

• Dual Multi-Pulley Towers with dual 95.5 kg weight stacks and a smooth 1:1 ratio for precision resistance and functional training.

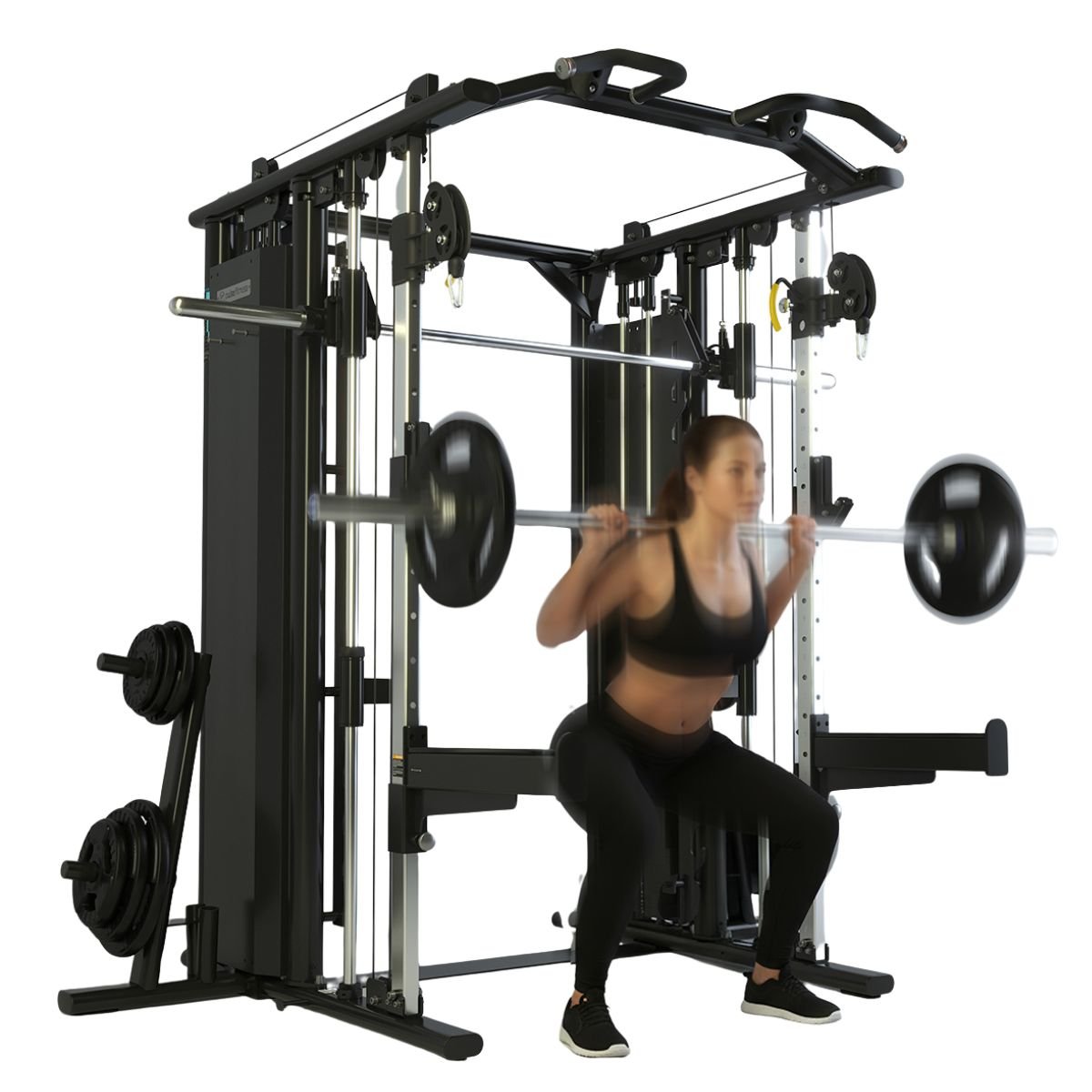

• Half Rack for full Olympic barbell work including squats, presses and heavy compound lifts.

• Built-In Smith Machine with long bar, J-hooks, and a 250 kg total load capacity for safe, controlled barbell training.

• Multi-Grip Pull-Up Bar providing wide, narrow and neutral grip options for complete upper-body development.

Constructed from heavy-gauge steel with grit-blast and zinc pre-treatment, then finished in electro-static epoxy-powder coating, the Multi-Functional Strength Rack is built for 24/7 use in commercial environments. Rubber anti-slip foot pads protect your floor and ensure maximum stability during intense sessions.

Despite its multi-station design, the unit maintains a space-efficient footprint (L 1753 mm × W 2265 mm × H 2207 mm) and fits perfectly under standard 300 cm ceilings. With a machine weight of 513 kg and a max user weight of 180 kg, this trainer is built to handle heavy lifters and high-frequency training.

Every unit includes a full accessory pack — stirrup handles, tricep rope, ankle strap, pull-up straps, J-hooks, collars, curl bar and long bar — providing everything required for strength, functional and hybrid programming from day one.

Whether you’re fitting out a premium home gym, upgrading a PT studio, or equipping a commercial facility, the Pulse Fitness Multi-Functional Trainer Rack 873H-AAB delivers four essential training stations in one space-saving, commercial-grade platform.

The Finer Details

STRUCTURE

• Frame Construction – Built from durable 3mm (11-gauge) steel to deliver exceptional stability and structural integrity during high-intensity workouts.
• Frame Protection – Every frame undergoes grit blasting and zinc pre-treatment for corrosion resistance, then receives a furnace-baked, heat-cured electrostatic epoxy-powder coat for maximum durability and easy cleaning.

OPERATION

• Fully enclosed weight stack towers for user safety.

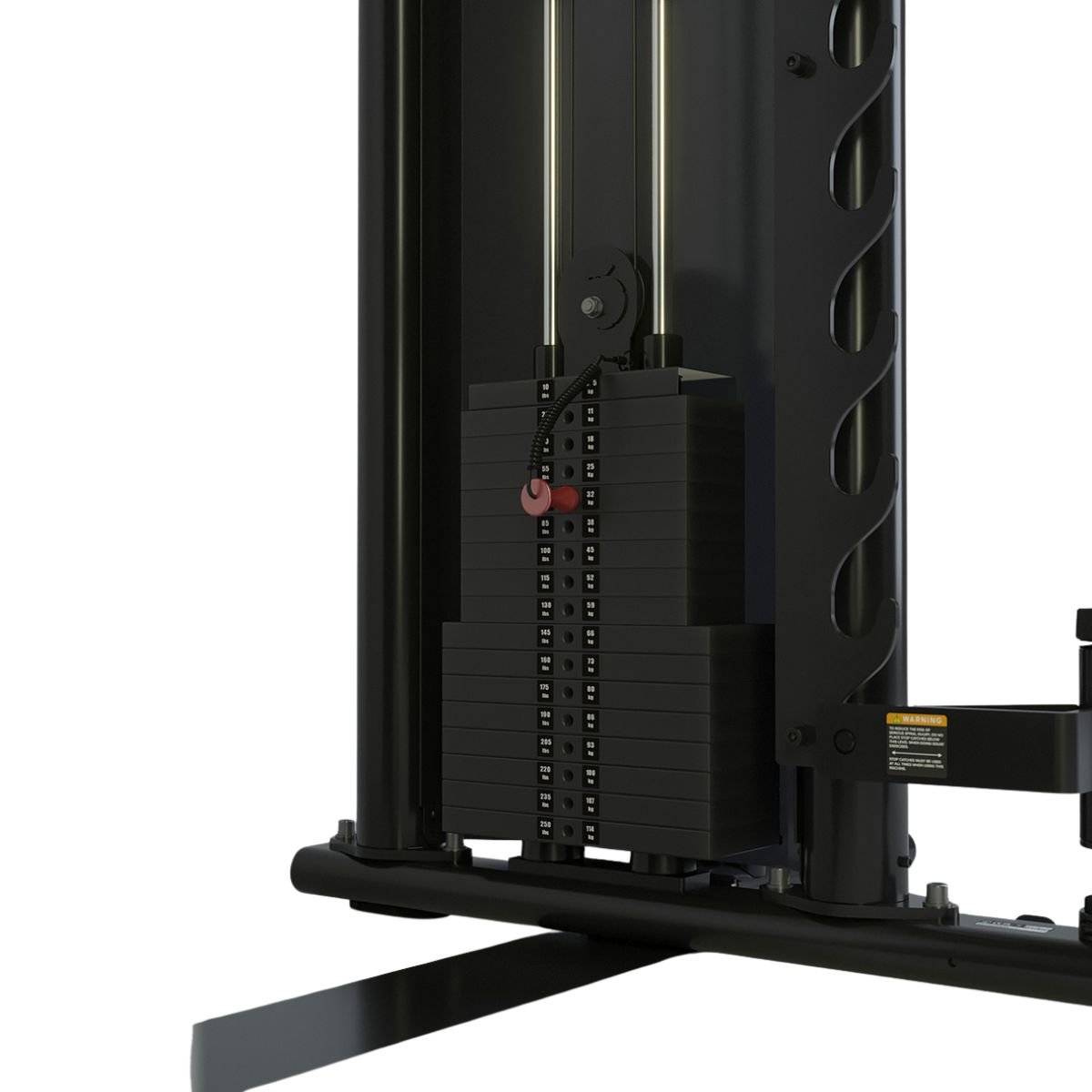

• Magnetic and tethered weight stack pins for secure, colour-coded weight selection.
• Cast solid-steel weight plates with self-lubricating nylon bushes for smooth movement.
• Chrome-plated guide rods engineered for frictionless operation.
• Weight stacks positioned for accessibility from seated or standing positions.

WEIGHT STACKS & CABLE SYSTEM

• Proven rubber bumper damping system for ultra-smooth operation.
• Stainless steel braided cable system rated over 600 kg, nylon coated for durability.
• Reinforced fibreglass pulleys with deep V-grooved channels for secure cable tracking.
• Precision bearings and bronze bushings for long-term reliability.
• 1:1 pulley ratio for consistent resistance across all heights.
• Ergonomic hand-grips designed to maintain a neutral wrist position.

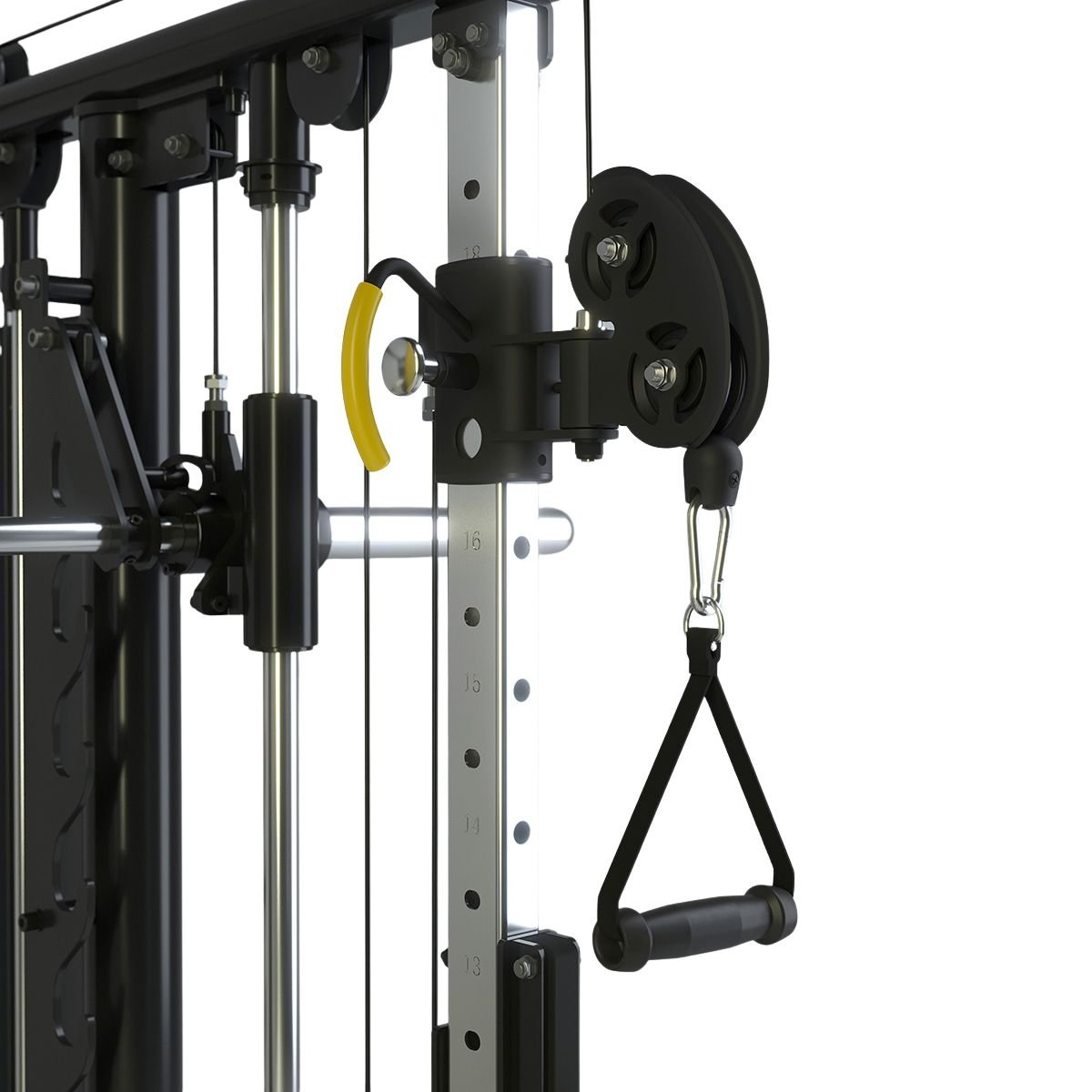

• Variable height pivotal pulleys to target upper body, lower body and torso.
• 30mm knurled Smith bar with sealed bearings and multiple hook positions.

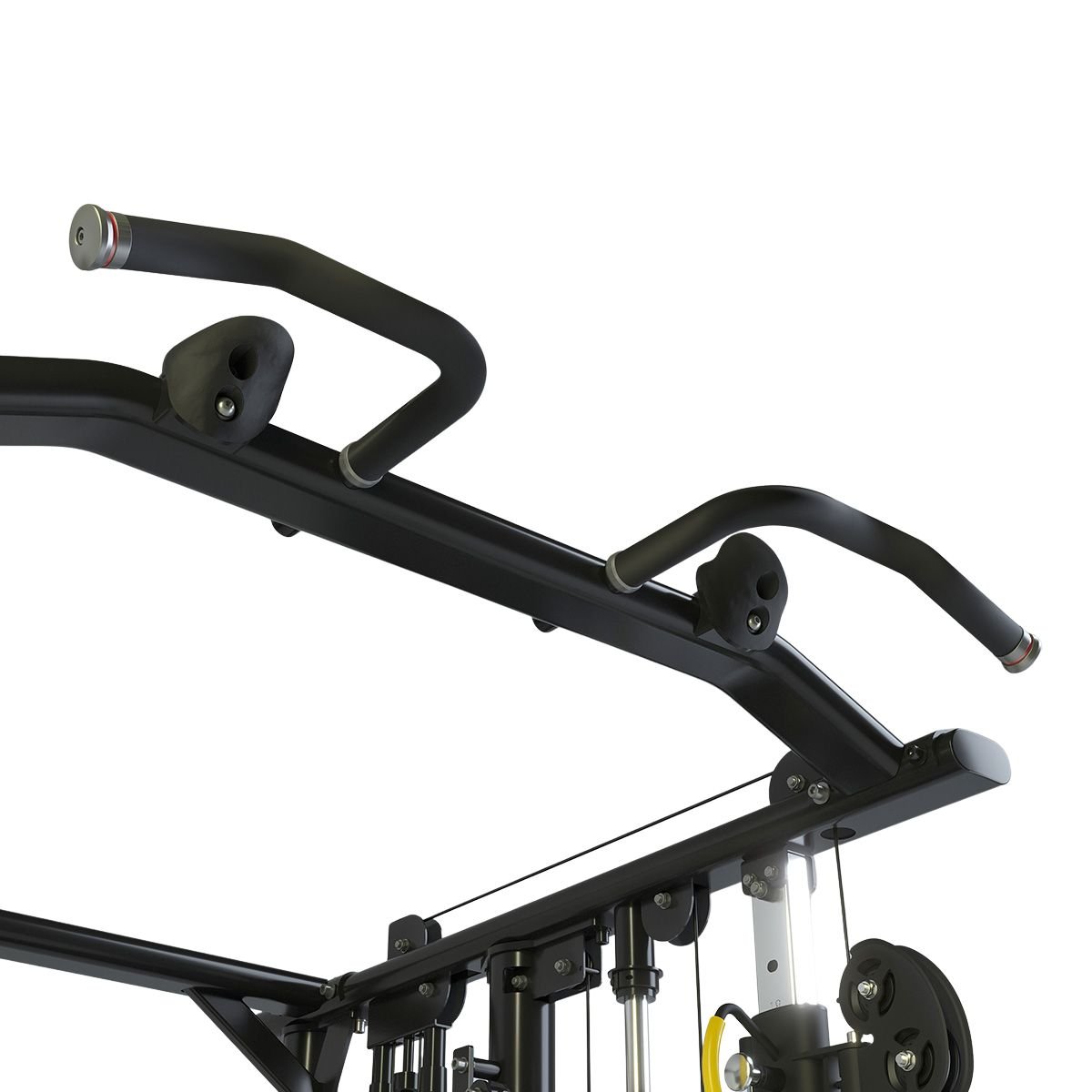

• Multi-grip chin-up beams for complete upper-body versatility.
• High-impact injection mouldings protect internal components from dust, sweat and daily wear.

ADJUSTMENTS

• Simple manual adjustments using pull spring-loaded lock pins.
• Quick-reference laser-etched markings on uprights for speed and accuracy.
• All pivot points are aligned to match natural body movement, reducing injury risk.
• Multiple start positions and grip options allow bodybuilding, strength and toning variations.

INSTRUCTIONS & SAFETY

• All weight selection and adjustments are accessible from the exercise position.
• Rubberised, moulded foot pads protect flooring and provide additional stability.
• Enclosed towers and guided systems ensure user safety during heavy lifts.
