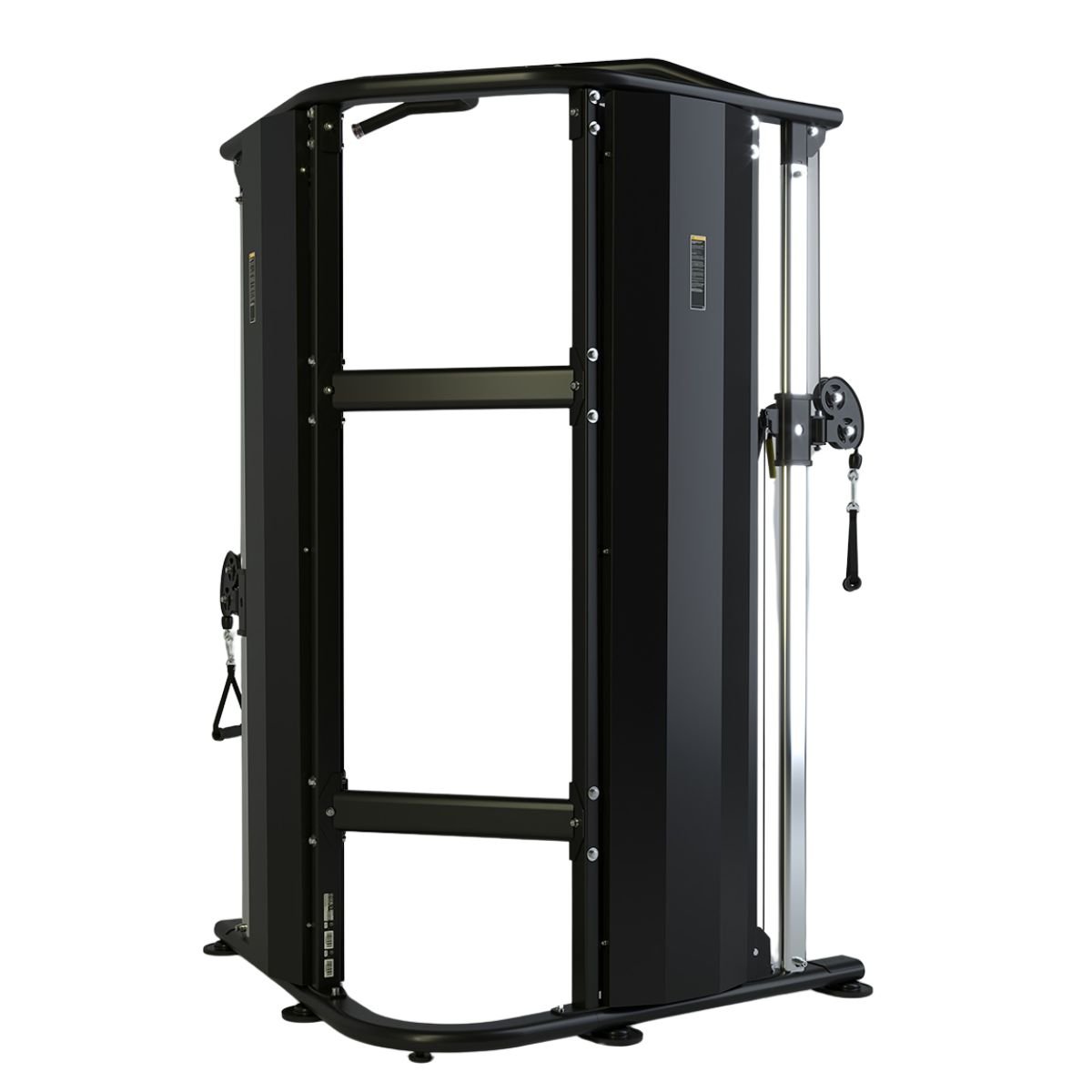

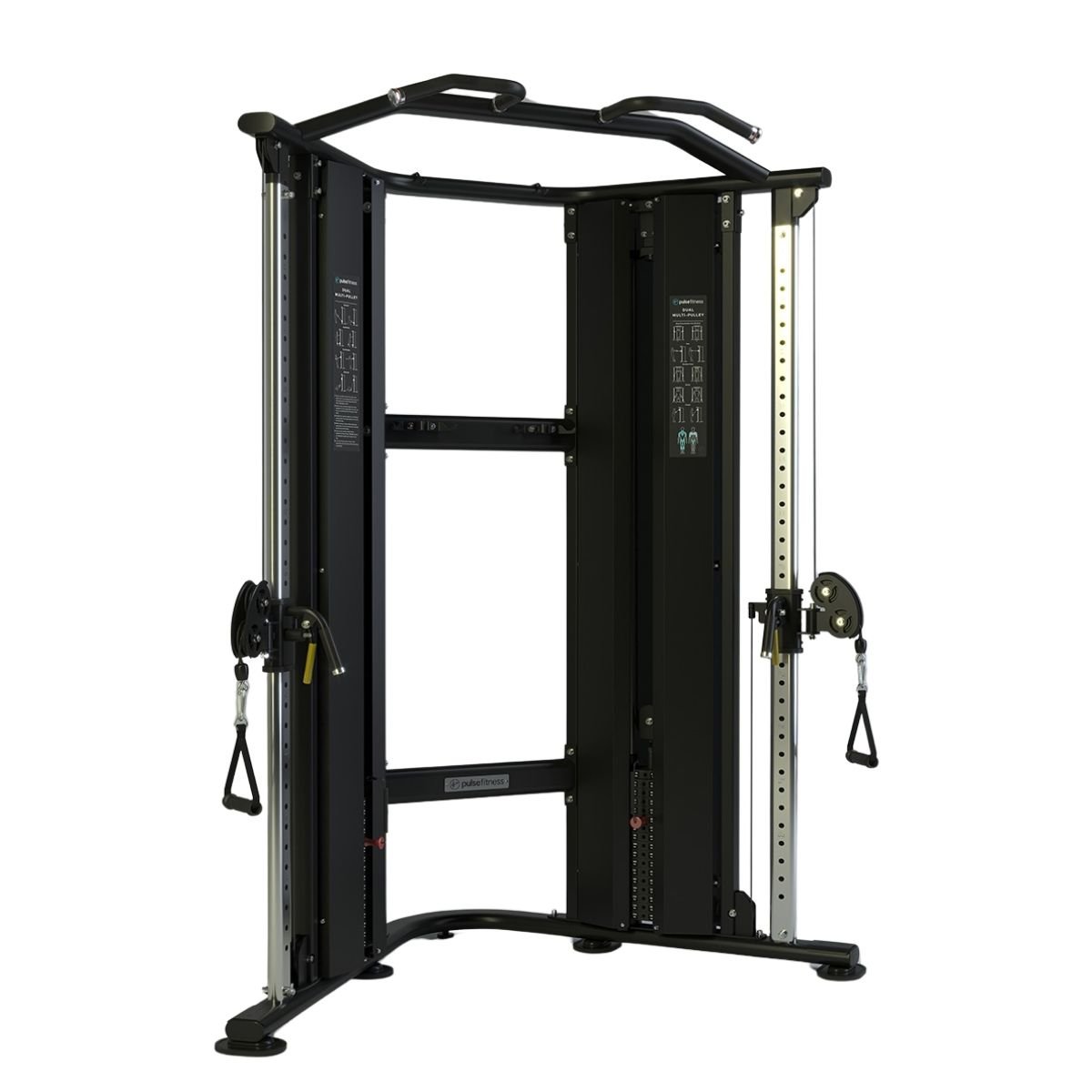

Pulse Fitness Selectorised Dual Multi Pulley (DAP)
Commercial Grade DAP | Dual 114kg Weight Stacks | 35 Adjusable Pulley Positions
Introducing the Pulse Fitness Dual Multi-Pulley (DAP) – a versatile, space-efficient machine designed to facilitate a wide range of functional training exercises. Ideal for both commercial gyms and home fitness spaces, this equipment supports comprehensive strength development by accommodating users of varying fitness levels. Meticulously crafted for use in heavy commercial/elite gym environments, its construction is from heavy-gauge steel section. Ensuring both stability, and the ability to endure the most vigorous of workouts. The two weight stack towers are fully enclosed. They provide a 1:2 ratio in terms of resistance. Perfect for both the lower starting amounts of weight a less experienced user will need. The machine will also accommodate high-speed movements for sport-specific training, maximising strength, isolating different muscle groups, and building both power and speed. Its compact design and dual functionality make it a valuable asset for any fitness facility aiming to optimize space without compromising on workout quality.
Key Features of the Pulse Fitness Selectorised Dual Multi Pulley (DAP)
- Dual 114kg Weight Stacks: Provides ample resistance for a variety of exercises, catering to users of all strength levels.
- 1:2 Pulley Ratio: Ensures smooth and consistent resistance throughout the range of motion.
- 35 Adjustable Pulley Height Positions (on each side): Allows for precise customization to suit individual exercise requirements.
- Easy-to-Use Pin Selectable Weight Plates: Facilitates quick and effortless weight adjustments during workouts.

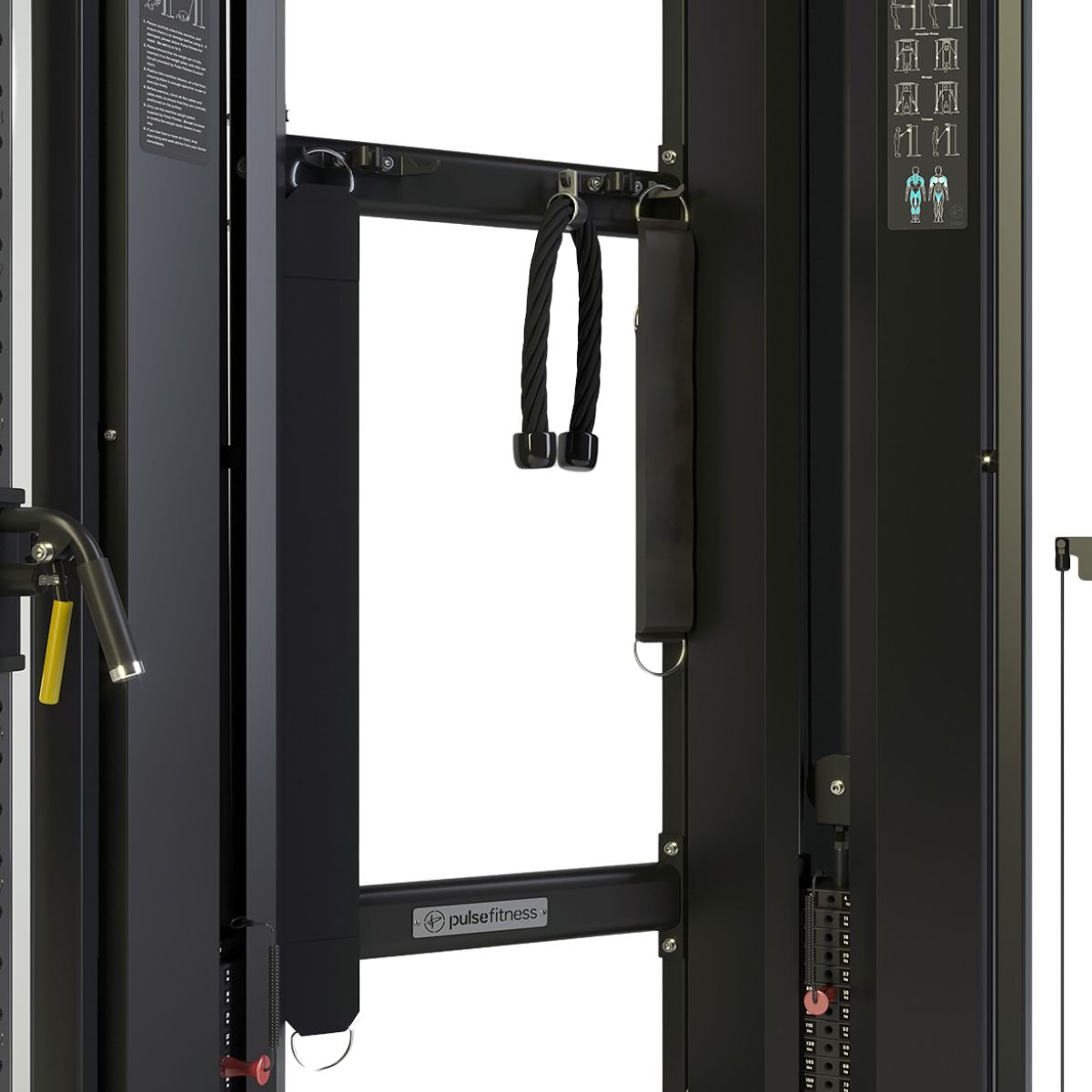

- Accessories included: Stirrup Handle (x2), Tricep Rope, Ankle Strap and Pull-Up Strap
Dual Multi Pulley (DAP) Measurements
- Dimensions (L x H x W): 184.5 cm x 235 cm x 101.5 cm
- Workout Area Required: 2.57 sqm
- Machine Weight: 429kg
- Weight Stack: 2 x 114kg
- Maximum User Weight: 180 kg
- Frame Colour: Sand Black
- Mouldings: Black
- Weight Stacks: Dual 114kg
- Pulley Ratio: 1:2
- Adjustable Positions: 35 per weight stack tower
Dual Multi Pulley (DAP) Specifications
| Category | Specification |
|---|---|
| STRUCTURE | |
| Frame Construction | 3mm (11-gauge) durable steel for exceptional structural integrity and stability. |
| Weight Stack Tower | Fully enclosed for maximum safety. |
| Frame Protection | Grit blasted, zinc pre-treated, furnace baked, heat-cured, and electrostatically epoxy powdered for a tough, corrosion-resistant, easy-to-clean finish. |
| OPERATION | |
| Weight Stack | Low starting weight with full weight plate range. Cast, machined solid-steel plates: 25mm thick, 4.5kg (10lbs) & 9.1kg (20lbs) sizes. |
| Weight Stack Pin | 10mm (3/8″) diameter, magnetic, tethered, colour-coded for easy identification. |
| Guide Rods | 19mm (3/4″) steel, polished with corrosion-resistant chrome plating. |
| Weight Suspension | Rubber bumper damping system for smooth operation. |
| Cable Transmission | 4.8mm (3/16″) preformed, braided stainless steel (302/304) aircraft cable, rated to 1678kg (3700lbs), nylon-coated. |
| Pulleys | 11cm & 11.5cm diameter, nylon reinforced with fiberglass, deep V-groove, with ABEC-rated sealed ball bearings. |
| Pivot Axles | 25mm (1″) solid steel with oil-impregnated bronze bushings. |
| Hand-Grips | 39mm (1-1/2″) slip-resistant rubber, non-absorbing, wear-resistant, ergonomically positioned for neutral wrist alignment. |
| Variable Pulley | Adjustable height pivotal pulley for upper/lower limb and trunk training. |
| Range of Motion | Full and natural range of motion across all machines. |
| Mouldings | High-impact thermoplastic housings; dust and sweat resistant, easy to clean. Rubber coverings are durable and impact-resistant. |
| ADJUSTMENTS | |
| Manual Adjustments | Easy-grip, pull spring-loaded lock-pins with hardened plunger and chrome-plated ‘tube-in-tube’ assemblies. |
| Alignment | Perfect axis and rotation points to reduce injury risk. |
| Start Positions | Multiple start positions for versatile workouts (toning & bodybuilding). |
| Grip Positions | Multiple grip options to target specific muscle groups. |
| INSTRUCTIONS | |
| Ease of Use | Weight selection and adjustments accessible from exercise position; all positions clearly indexed. |
| Info Panel | Step-by-step pictorial instructions showing setup, operation, positions, and targeted muscle groups. |
| SAFETY | |
| Foot Pads | Moulded rubber foot pads to protect floors and enhance safety (standard). |
